Self-hosted · single page · your LAN
No query builder, no plugin format, no YAML dialect to learn. A widget is a TypeScript file on disk that returns data. The platform runs it on a schedule, on an MQTT message or on a webhook, checks what came back against a typed schema, and pushes it to every open tab.
import type { Ctx, StatData } from '@n-dashboard/widget' export default async function (ctx: Ctx): Promise<StatData> { const r = await ctx.fetch(URL).then((r) => r.json()) return { value: r.bitcoin.usd, unit: 'USD', delta: r.bitcoin.usd_24h_change, } }
One contract
Everything else — how often it runs, whether a message woke it up, where its API key came from, what happened last time — is the platform's problem. There is exactly one kind of widget in the system, so summing a field, mixing two APIs and remembering what you already saw are all the same amount of work.
Runs server-side
Widgets execute in the server's worker pool, so there is no CORS to fight, no secret in a bundle, and one poll feeds every open tab. MQTT sockets and OAuth tokens live where a long-lived connection belongs.
Checked, not hoped
Each kind publishes a TypeScript type and a matching schema. The result is validated on the main thread
after the widget returns — so a stringified number from an API surfaces as
delta — expected number, received string rather than an empty card.
Plain files
Each widget is a folder holding its code, its config and its recorded history. Diff it, grep it, edit it in your own editor, copy one between machines. The admin panel is a convenience, not the gatekeeper.
Nine kinds
The kind decides the renderer and the return type. Note how much stat covers on its own — a
crypto price, a stock quote, an MQTT temperature and a sum over an API response are the same card. The
difference lives in the function, not the widget catalogue.
Triggers
Declare one trigger or several. The invocation contract is identical either way, so a widget can poll on a clock and still repaint the instant something pushes to it.
"triggers": [{ "every": "30s" }]
On a clock. Start times are jittered, so twenty widgets on 30s don't all fire on the same
tick and queue behind each other.
"triggers": [{ "mqtt": "home/+/temperature" }]
The instant a message lands. The server subscribes to exactly the union of filters declared by enabled widgets — no wildcard firehose — and recomputes it whenever you enable or edit one.
"triggers": [{ "webhook": true }]
On a POST to a URL carrying a per-widget random token, with the payload on
ctx.trigger.body. Anything that can call a URL can drive a card.
Authoring
The editor runs the actual TypeScript language service, fed the same declaration file the server validates
against. One source of truth, so the types you get in the editor cannot drift from the ones that run.

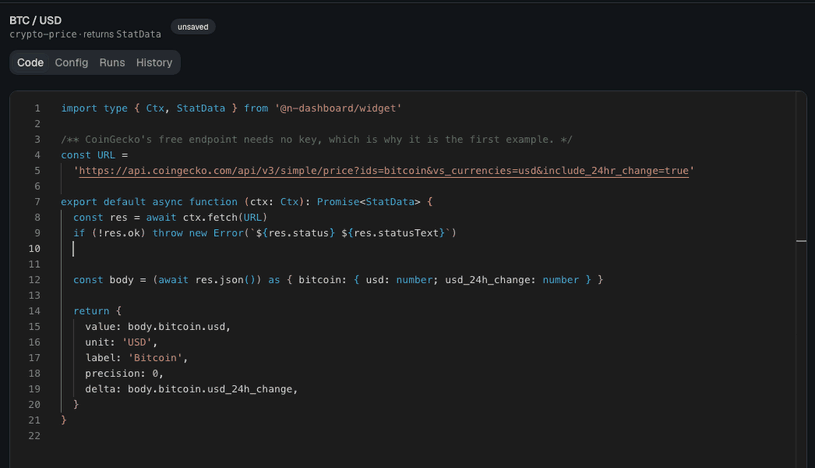

Autocomplete on ctx. is the reason TypeScript widgets are worth having.
ctx.d.ts the server validates against.Run, before you commit to it
Press Run and the widget executes against the live API with your real credentials — but state writes go to a scratch copy and nothing is appended to history. It is safe to mash: no polluted series, no advanced "mark as seen" cursor.
✓ ran in 155ms
✓ schema: matches
console:
returned:
Start from a response
The creation wizard fetches a sample through the server, shows it as a tree, and lets you click your way to a value — including sum, count and average over an array. Then it writes real TypeScript and hands you the editor. It is a code generator, not a second widget model, so it is offered at create time only.
A source it has never heard of is still a source: write the function yourself, the server runs it with real connections, and the picker works over whatever it returned. Or skip the wizard and start from the kind's starter function.
{ "ethereum": { "usd": 1920.21 ← click } } ↓ generates return { value: r.ethereum.usd }
Memory
Remembering a cursor between runs and charting a value over a day are not the same job, so they are not the same feature.
ctx.state
How an alert widget remembers lastSeenMessageId and reports only what is new. Read when the
widget is invoked, written back when it finishes — which is what lets the getter stay synchronous despite
running on another thread.
const lastSeen = ctx.state.get<string>('lastSeenTs') ?? '0' const fresh = messages.filter((m) => m.ts > lastSeen) ctx.state.set('lastSeenTs', messages[0].ts)
History
Add "history": { "retain": "24h" } and the platform appends one number per successful run to
a bounded on-disk series. That is what makes an MQTT temperature — which arrives as a single reading —
chartable over a day, with no accumulation code in the widget. Any widget can read any widget's history.
const points = await ctx.history.query({ widget: 'office-temp', since: '24h', bucket: '5m', agg: 'avg', }) return { series: [{ name: 'Office °C', points }] }
Connections
It holds the socket, refreshes the token and handles reconnect backoff, so widget code stays short. You never see a client object.
Subscriptions are derived from what your widgets declare, not configured separately. The latest value per
topic is cached and mirrored to disk, so after a restart ctx.mqtt().latest() returns the last
known reading — flagged stale — instead of nothing. A chatty sensor is coalesced down to one
queued run carrying the newest message.
A secret iCal address works in five minutes with no cloud project; OAuth gives live data and costs a
one-time setup. Both sit behind the same calendar.upcoming(), so switching between them is a
setting rather than a rewrite.
Stored chmod 600 outside your config, write-only from the panel. No route reads a value back
— the API reports only whether a slot is filled — and nothing appears in a response, a log line or an
event frame.
When things break
A price you can still roughly trust beats an empty rectangle — as long as the card admits how old it is. So a failing widget keeps its last good value, dimmed, with a badge, its age, and the reason on hover.
One board
Where the cards sit, whether the board is being rearranged, and whether it is light or dark are all fields in one file on the server — pushed over the same stream the values ride. Move a card on your laptop and the wall display follows. Switch it to dark and you don't walk over to the wall to do it again.
data/dashboard.json
{
"layout": [ /* one entry per card */ ],
"editing": false, // not per tab
"theme": "dark" // not per browser
}
Optional login
Set ADMIN_PASSWORD in .env and /admin asks for it — as does every
route behind it: widget source, run logs, history, connections and the secret store. Leave it unset and
everything stays open, which is the right answer on a trusted LAN and the way it always worked.
Signed out, the board still draws itself and webhooks still fire on their own tokens — but nothing can be written to it, and the header shows a liveness dot and nothing else. No edit button, no theme switch, no link to the panel for whoever walks past the screen.
One shared password from the environment, an httpOnly session cookie, and sessions that end when the process does. It keeps the panel out of reach of the room, and it is not pretending to be more.
On disk
Config writes are atomic — temp file then rename — and keep the previous contents beside them, so a hand-edit that breaks the JSON is recoverable. A corrupt history file costs you one series, not your dashboard.
data/ ├── dashboard.json layout, edit mode, theme ├── connections.json brokers, calendars — no secret values ├── .secrets.json chmod 600, gitignored └── widgets/ └── office-temp/ ├── widget.json kind, triggers, retention, hook token ├── widget.ts the function ├── state.json ctx.state └── history.ndjson append-only, trimmed to the window
Palette
The eight series colours are read back out of the same CSS variables that style the cards, so the two cannot drift. The order is the colour-blind safety mechanism, not decoration: it is validated for separation against the card surface in both light and dark.
Get started
Needs Node 26 or newer — the server runs its TypeScript directly, with no build step and no transpiler, which is also what gives widget stack traces honest line numbers.
git clone https://github.com/devapro/n-dashboard cd n-dashboard npm install npm run dev # http://localhost:5273
The first run copies seventeen example widgets in, disabled —
so nothing is broken for want of an API key. Enable the ones you want; eight of them
— the price, weather, Hacker News, npm, endpoint-health, candlestick, issue-sum and disk
cards — need no key at all. Set ADMIN_PASSWORD in .env to put
a login on /admin; the board itself stays open by design, so bind it to your LAN and keep it
off the public internet.
Always on
docker run -d -p 8080:8080 \ -v n-dashboard-data:/app/data \ ghcr.io/devapro/n-dashboard:latest
Prebuilt for amd64 and arm64, so a Pi or an ARM NAS needs no local build.
:latest follows releases and :edge follows main. Prefer to build it
yourself? cd docker && docker compose up -d --build, and
--profile broker brings up an MQTT broker too.
data/ is the single mutable volume — widgets, layout, secrets and history. Back that up and
you have backed up everything.
Deliberately absent
A personal dashboard for one person on one network can be much simpler than a product, and these were left out on purpose rather than pending.
